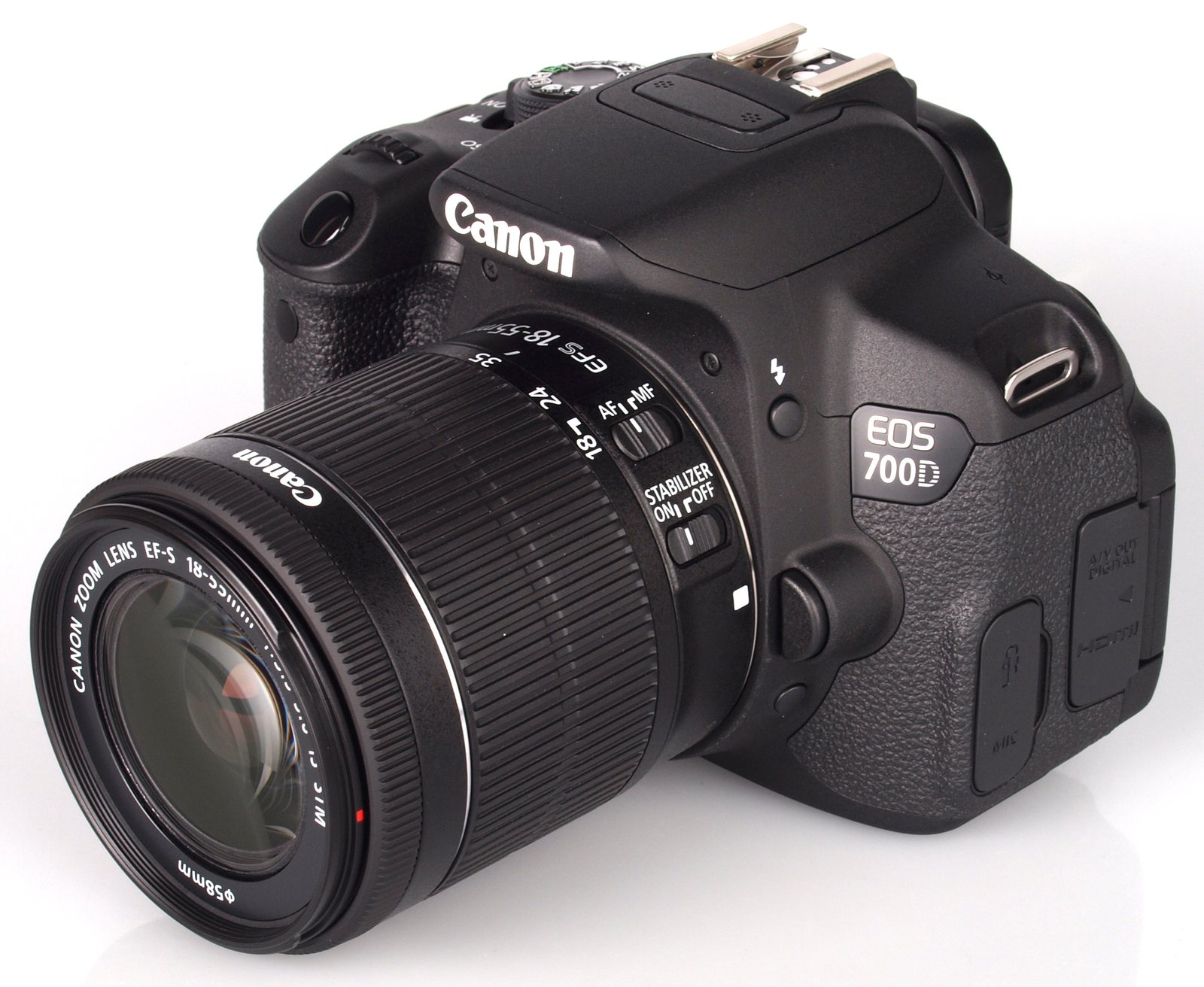

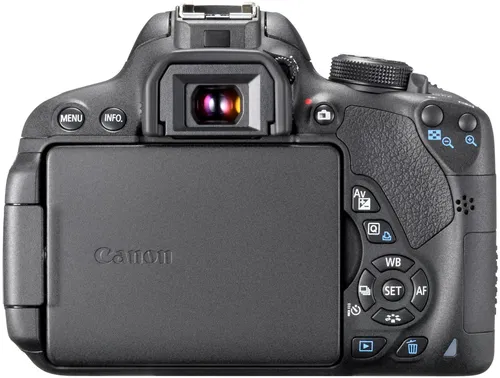

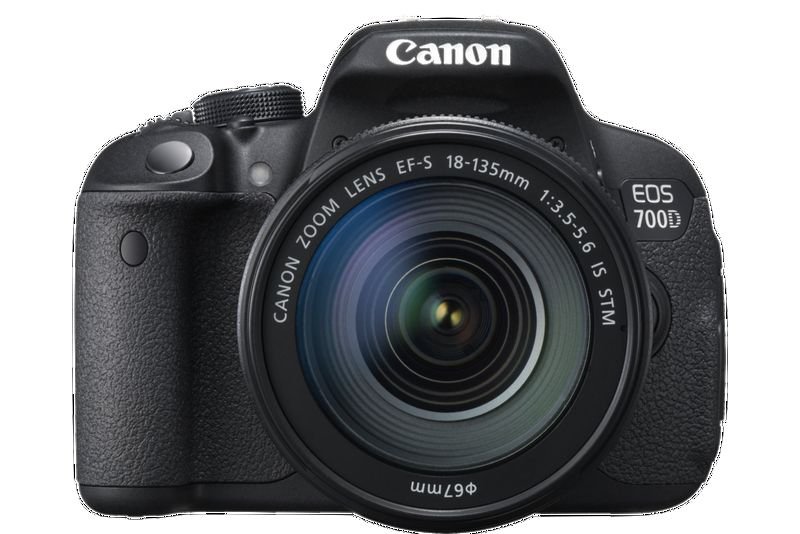

Canon Eos 700d

Description

•



  Type

  22.3 x 14.9mm CMOS

• Effective Pixels

  Approx. 18.0 megapixels

• Total Pixels

  Approx. 18.5 megapixels

• Aspect Ratio

  3:2

• Low-Pass Filter

  Built-in/Fixed

• Sensor Cleaning

  EOS integrated cleaning system

• Colour Filter Type

  Primary Colour

Image Processor

• Type

  DIGIC 5

Lens

• Lens Mount

  EF/EF-S

• Focal Length

  Equivalent to 1.6x the focal length of the lens

Focusing

• Type

  TTL-CT-SIR with a CMOS sensor

• AF System / Points

  9 cross-type AF points (f/2.8 at centre)

• AF Working Range

  EV -0.5 -18 (at 23°C & ISO100)

• AF Modes

  AI Focus

  One Shot

  AI Servo

• AF Point Selection

  Automatic selection, Manual selection

• Selected AF Point Display

  Superimposed in viewfinder and indicated on LCD monitor

• AF Lock

  Locked when shutter button is pressed half way in One Shot AF mode.

• AF Assist Beam

  Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

• Manual Focus

  Selected on lens

Exposure Control

• Metering Modes

  TTL full aperture metering with 63-zone SPC

  (1) Evaluative metering (linked to all AF points)

  (2) Partial metering at center (approx. 9% of viewfinder)

  (3) Spot metering (approx. 4% of viewfinder at center)

  (4) Center weighted average metering

• Metering Brightness Range

  EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)

• AE Lock

  Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.

  Manual: By AE lock button in creative zone modes.

• Exposure Compensation

  +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

• AEB

  3 shots +/- 2 EV, 1/2 or 1/3-stop increments

• ISO Sensitivity

  Open

  AUTO(100-6400), 100-12800 in 1-stop increments

  ISO can be expanded to H: 25600

  During Movie shooting: Auto (100-6400), 100-6400 (Whole stop increments) ISO can be expanded to H: 12800

Shutter

• Type

  Electronically-controlled focal-plane shutter

• Speed

  30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

White Balance

• Type

  Auto white balance with the imaging sensor

• Settings

  AWB, Daylight, Shade, Cloudy, Tungsten, White

  Fluorescent light, Flash, Custom.

  White balance compensation:

  1. Blue/Amber +/-9
